BIW Components & Structure

The BIW can be divided into two main assemblies: the upper body structure and the lower body structure. Together, they form the complete body shell.

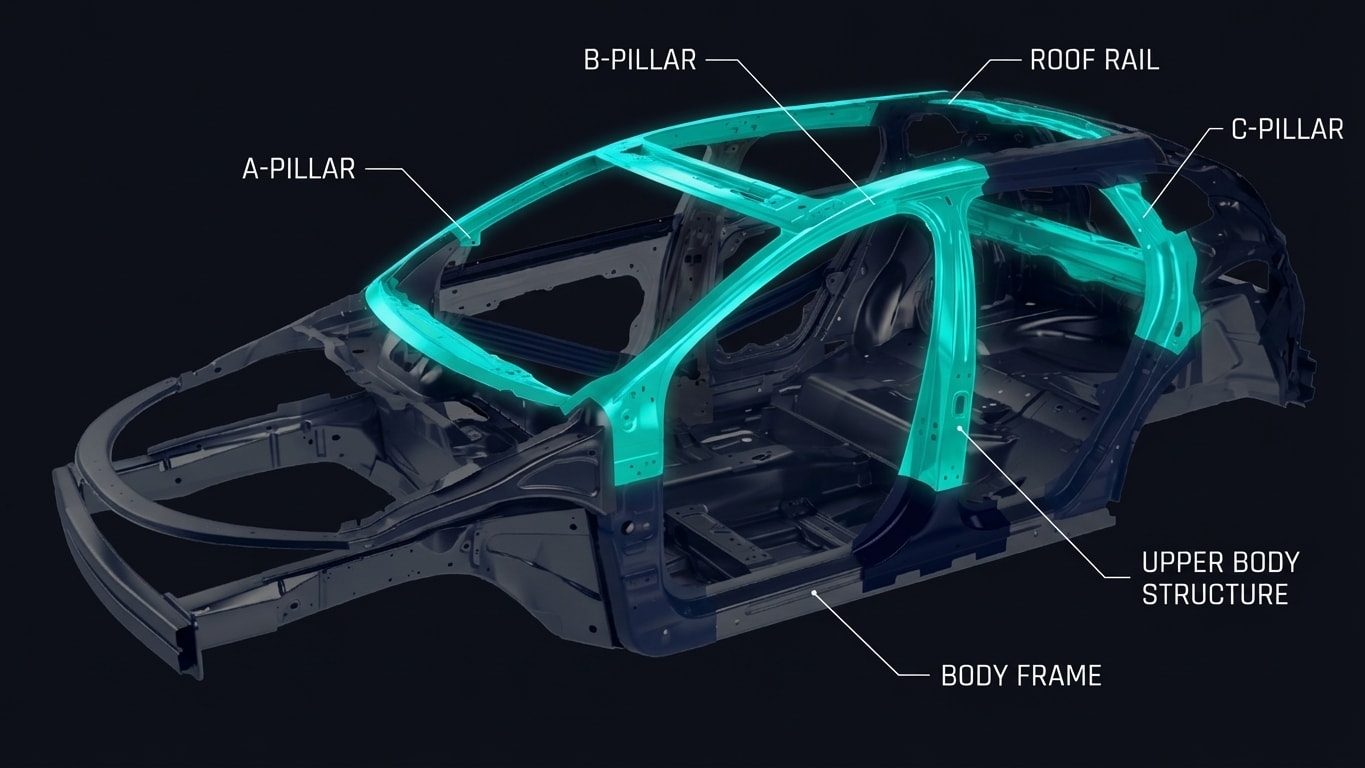

Upper Body Structure

The upper body structure includes everything above the floor—the passenger compartment cage:

Key Upper Body Components

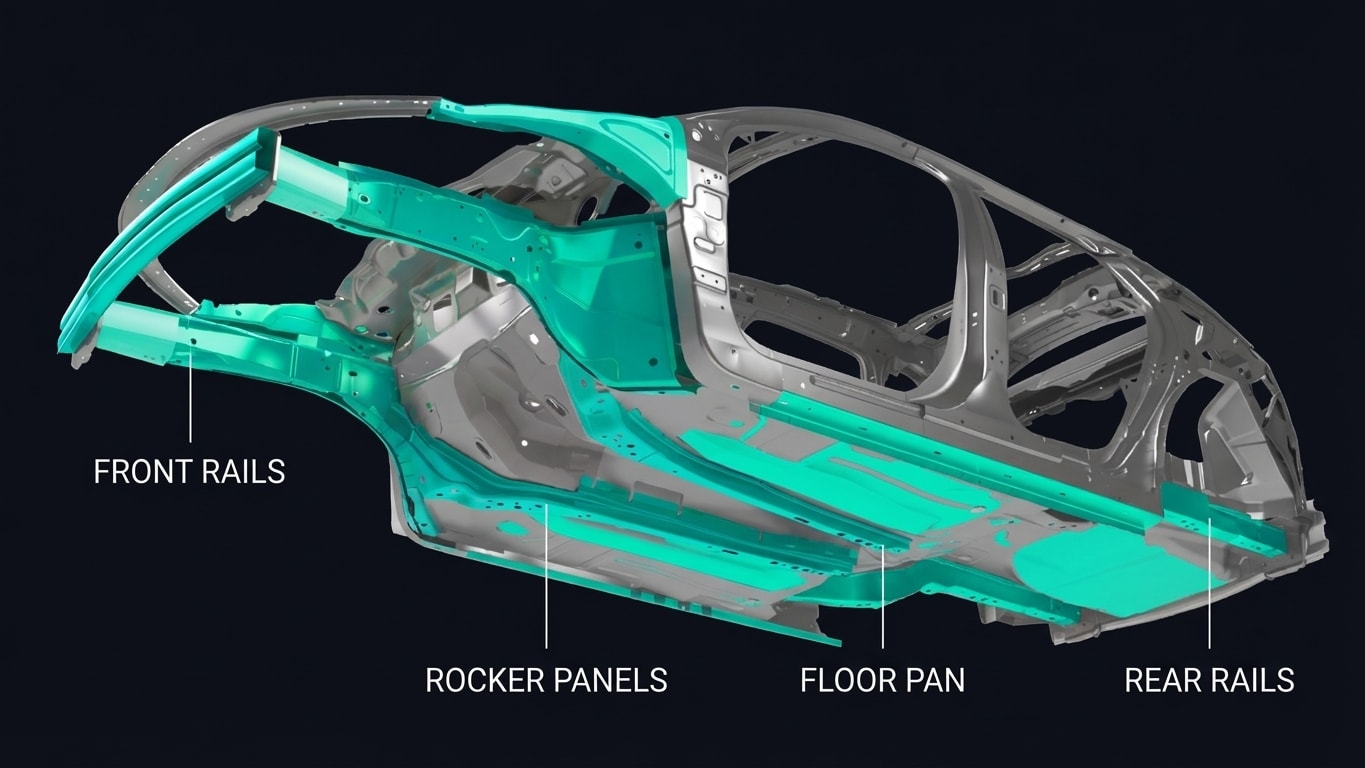

Lower Body Structure

The lower body structure forms the foundation—the underbody platform:

Key Lower Body Components

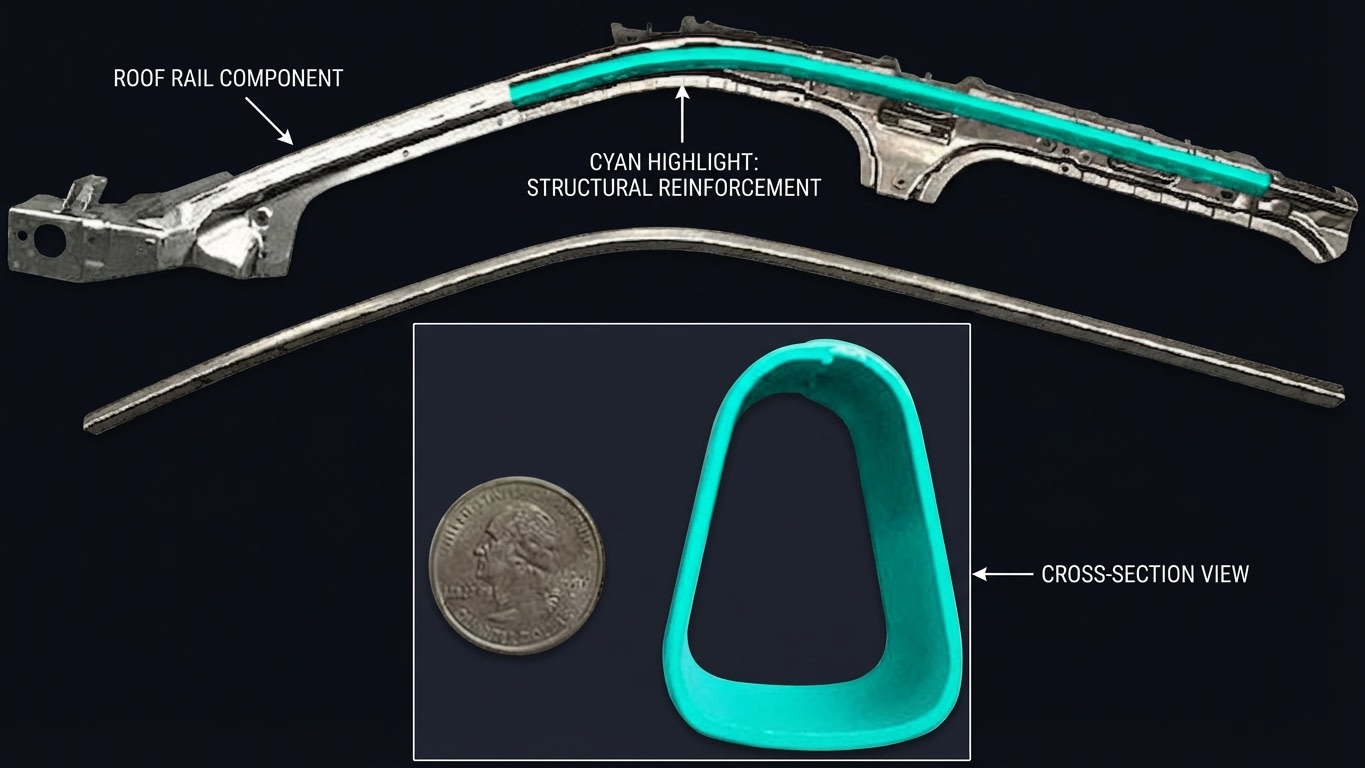

Roof Rail Detail

The roof rail (also called the side roof rail) runs along the top of the body side, connecting:

• A-pillar at the front
• B-pillar in the middle
• C-pillar at the rear

It provides:

• Rollover protection
• Roof crush resistance
• Curtain airbag mounting

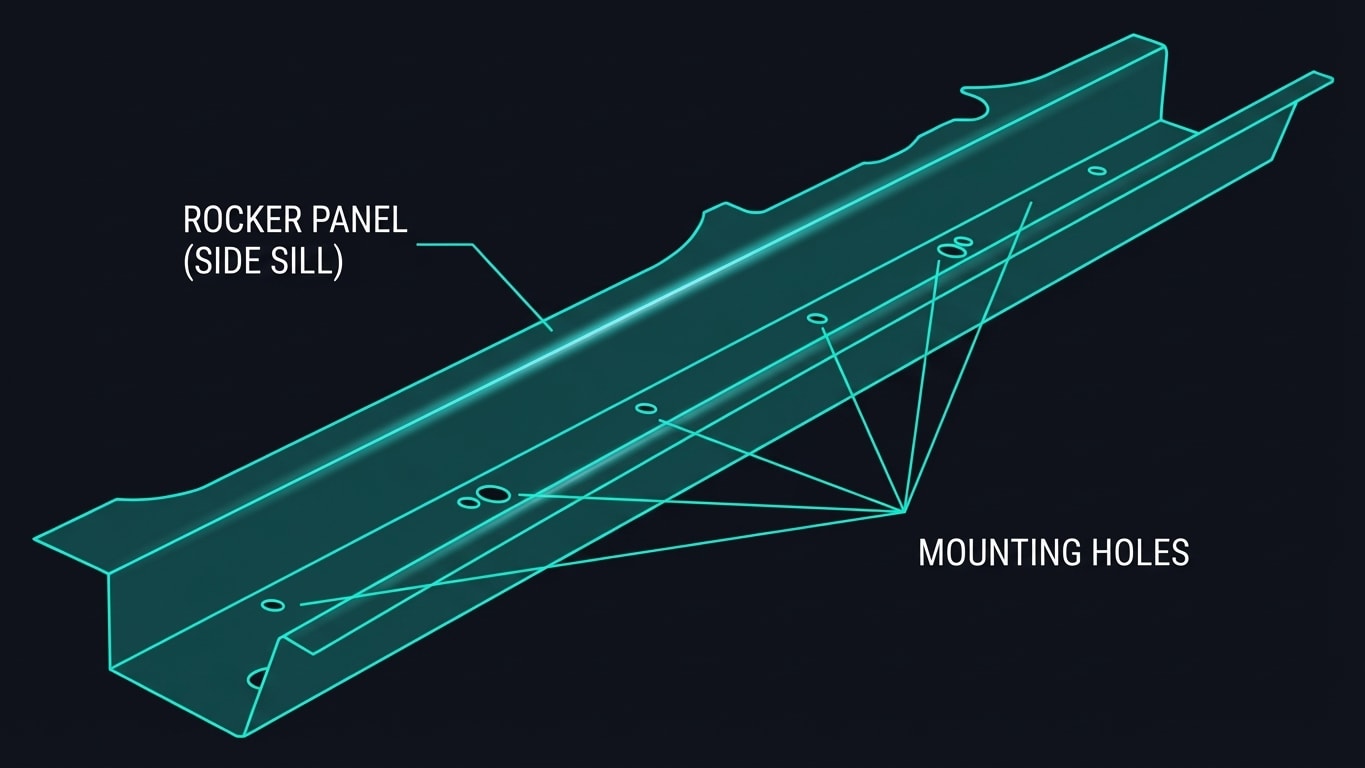

Rocker Panel (Side Sill)

The rocker panel (or side sill) runs along the bottom of the door openings:

• Connects front structure to rear structure
• Critical for side impact protection
• Often multi-piece with reinforcements

How Components Connect

BIW components connect at nodes—points where multiple parts meet:

        Roof Rail
           │
    ┌──────┼──────┐
    │      │      │
A-Pillar─B-Pillar─C-Pillar
    │      │      │
    └──────┼──────┘
      Rocker Panel

Key connection nodes:

• A-pillar base → Front rail + rocker + shock tower
• B-pillar base → Rocker + floor cross-member
• C-pillar base → Rocker + rear wheelhouse

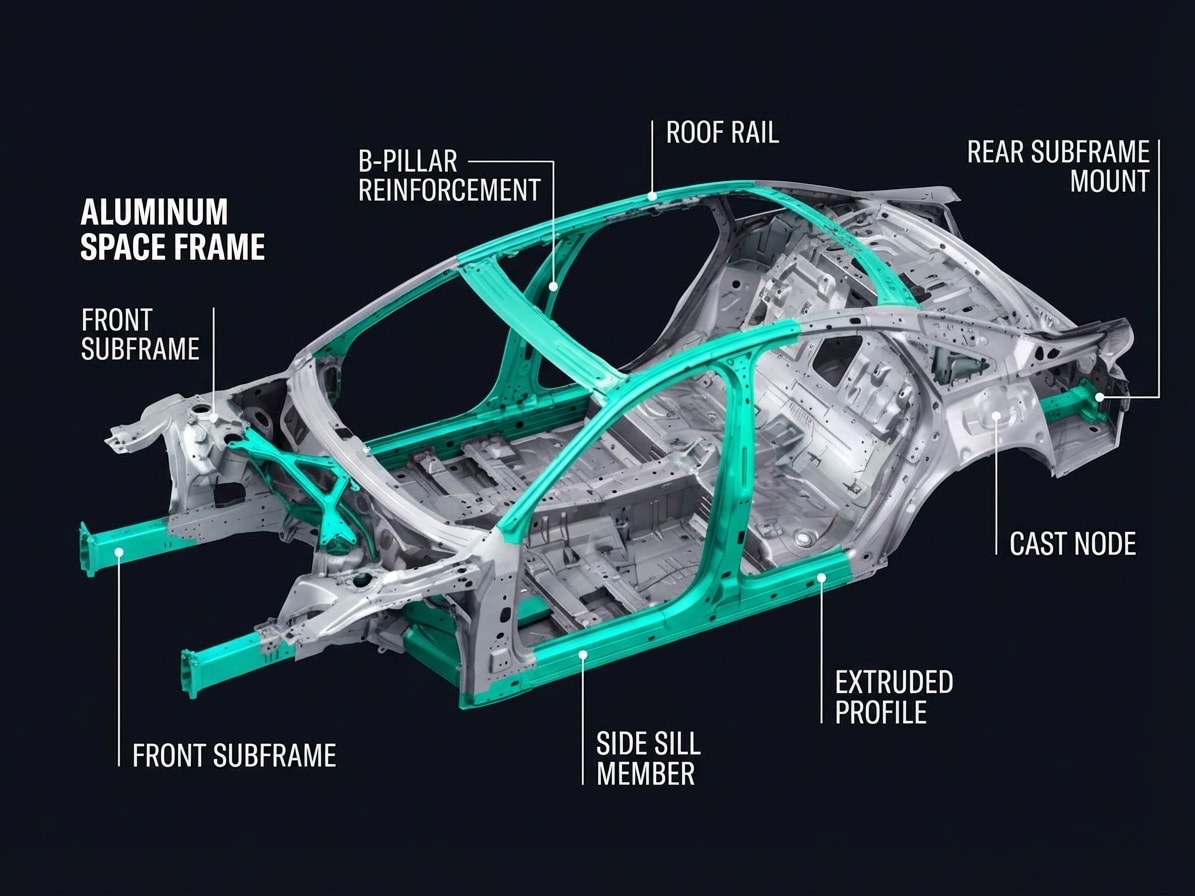

The Space Frame Concept

A space frame uses extruded profiles and cast nodes instead of stamped panels:

• 58% aluminum
• Extruded sections + die-cast nodes
• 40% lighter than equivalent steel

Key Takeaways

• Upper body = pillars + roof rail + header
• Lower body = floor pan + rails + rockers + tunnel
• Components connect at nodes for load transfer
• Space frames use extrusions instead of stampings

---
