Pillars: A, B, C & D

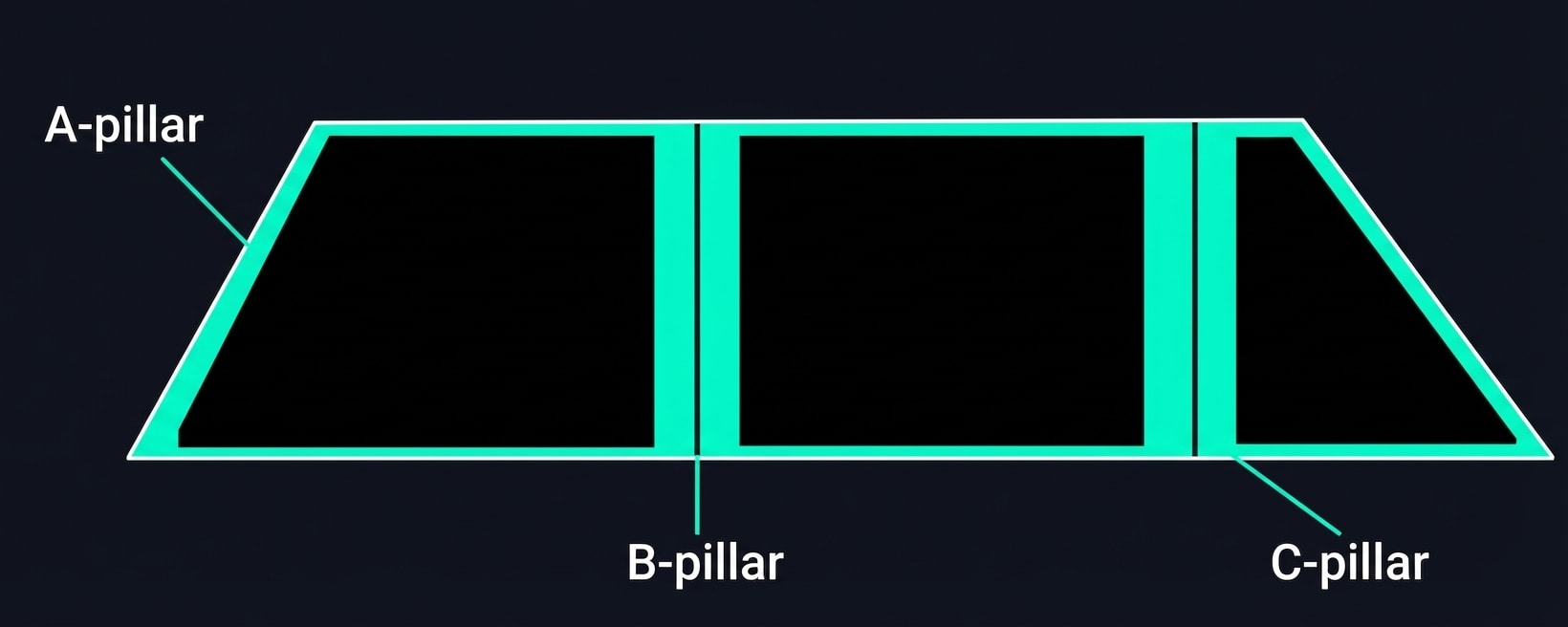

Pillars are the vertical structural members that connect the roof to the body. They're named alphabetically from front to rear: A, B, C, and sometimes D (on longer vehicles).

Why Pillars Matter

Pillars serve multiple critical functions:

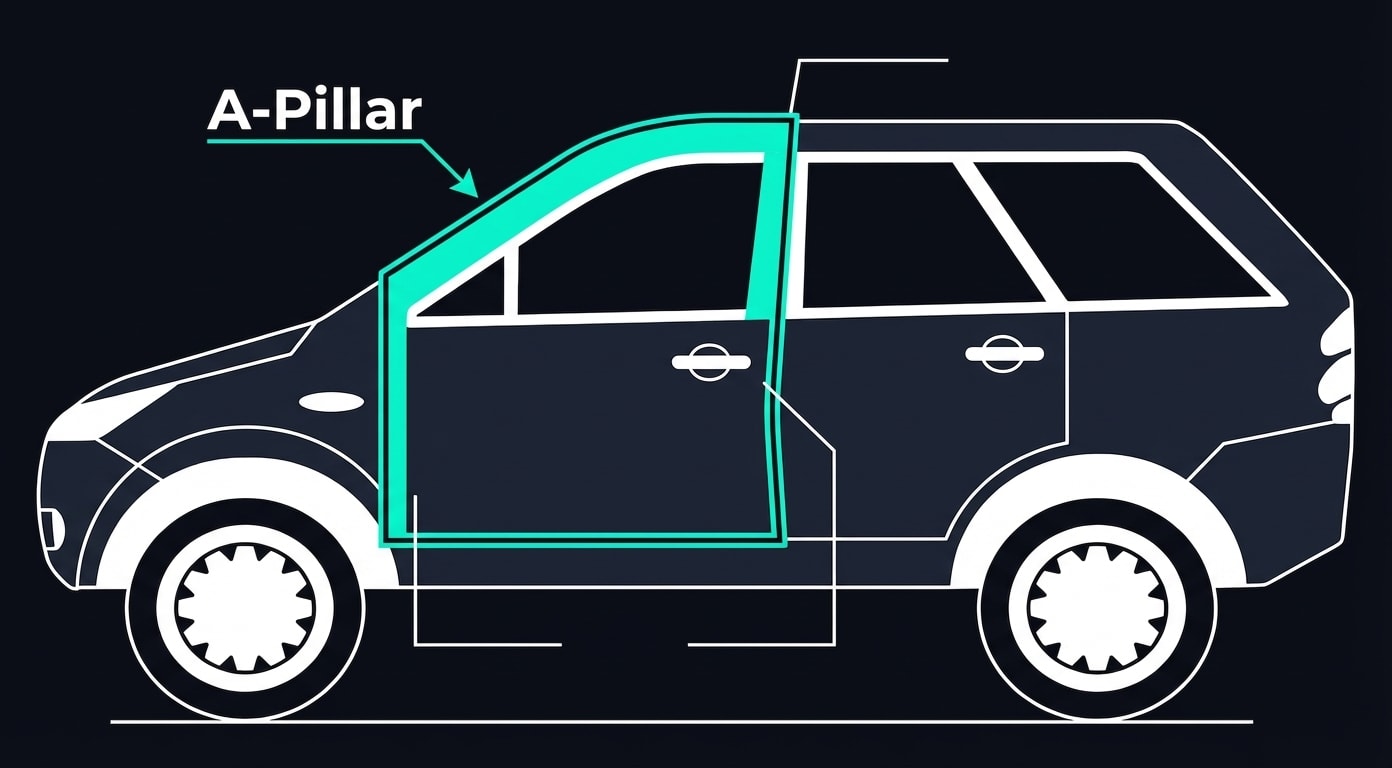

A-Pillar (Front Pillar)

The A-pillar connects the roof to the front of the body, framing the windshield.

A-Pillar Functions

• Supports windshield edges
• Front door hinge mounting
• Side curtain airbag routing
• Contributes to frontal crash structure

A-Pillar Design Challenges

The A-pillar presents a visibility vs. strength trade-off:

A-Pillar Construction

Typical A-pillar assembly includes:

• Outer panel — visible exterior surface
• Inner panel — faces interior cabin
• Reinforcement — sandwiched between for strength
• Hot-stamped insert — UHSS for rollover protection

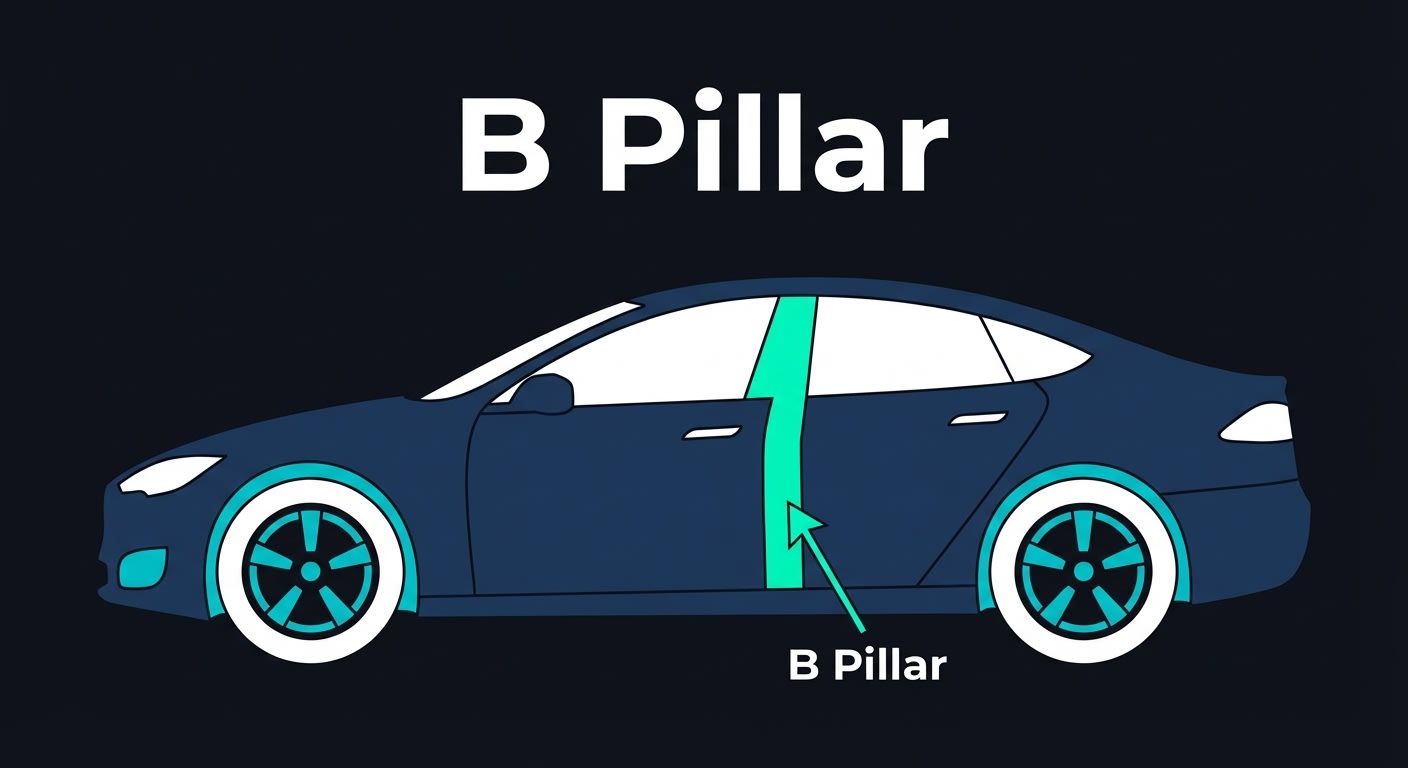

B-Pillar (Center Pillar)

The B-pillar is the center pillar between front and rear doors—the most structurally critical pillar.

B-Pillar Functions

• Front door latch striker
• Rear door hinge mounting
• Primary side impact protection
• Seatbelt upper anchor (often)
• Curtain airbag mounting

B-Pillar Design Requirements

The B-pillar must handle extreme side impact loads:

B-Pillar Materials

B-pillars typically use the strongest materials in the entire BIW:

• Hot-stamped boron steel (1500-2000 MPa)
• Tailor-welded blanks — varying thickness along height
• Reinforcement patches at critical areas

B-Pillar Cross-Section:
┌────────────────────────┐
│  ┌──────────────────┐  │
│  │   Outer Panel    │  │
│  │   (Mild Steel)   │  │
│  ├──────────────────┤  │
│  │  Reinforcement   │  │
│  │ (Hot-Stamped)    │  │
│  ├──────────────────┤  │
│  │   Inner Panel    │  │
│  │  (HSS or UHSS)   │  │
│  └──────────────────┘  │
└────────────────────────┘

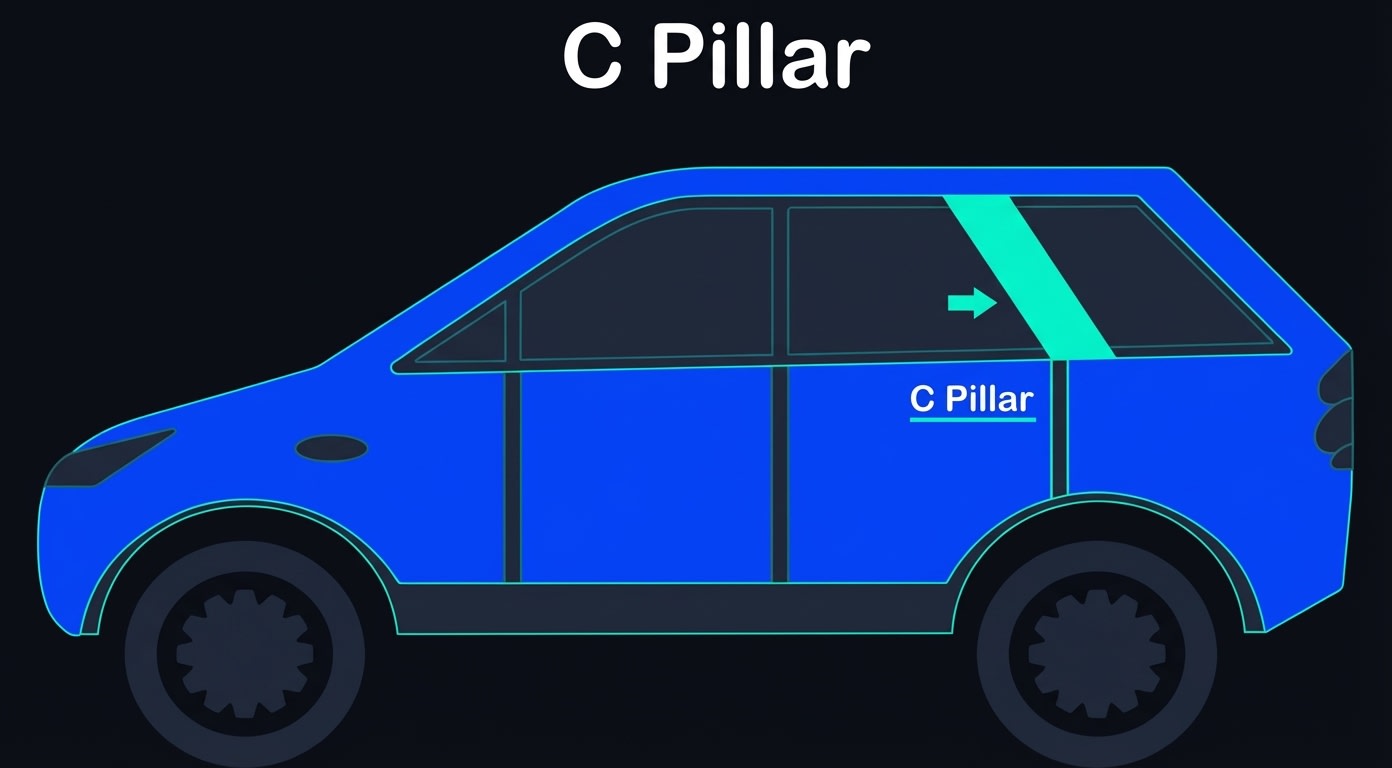

C-Pillar (Rear Pillar)

The C-pillar connects the roof to the rear body, framing the rear glass (on sedans) or rear door (on SUVs/wagons).

C-Pillar Functions

• Rear door latch striker (sedans)
• Rear glass mounting
• Rear quarter panel connection
• Curtain airbag termination

C-Pillar Variations

C-Pillar Design Considerations

The C-pillar affects:

• Rear visibility — larger pillar = larger blind spot
• Trunk/cargo access — integration with liftgate
• Styling — defines rear character of vehicle

D-Pillar (Rear-Most Pillar)

On longer vehicles (minivans, large SUVs, wagons), a D-pillar exists behind the C-pillar:

D-Pillar Functions

• Liftgate hinge support
• Rear crash structure connection
• Cargo area structural support

Pillar Naming on Different Body Styles

4-Door Sedan:
    A       B       C
    │       │       │
    ▼       ▼       ▼
┌───┬───────┬───────┬───┐
│   │ Front │ Rear  │   │
│   │ Door  │ Door  │   │
└───┴───────┴───────┴───┘


2-Door Coupe (no B-pillar):
    A               C
    │               │
    ▼               ▼
┌───┬───────────────┬───┐
│   │     Door      │   │
│   │               │   │
└───┴───────────────┴───┘


Minivan (4 pillars):
    A       B       C       D
    │       │       │       │
    ▼       ▼       ▼       ▼
┌───┬───────┬───────┬───────┬───┐
│   │ Front │ Sliding│ 3rd  │   │
│   │       │       │ Row   │   │
└───┴───────┴───────┴───────┴───┘

Pillar-less Designs

Some vehicles feature pillar-less or hardtop designs:

• No B-pillar between front and rear doors
• Doors meet at center when closed
• Provides open, airy feel
• Requires reinforced floor and roof structure
• Example: Rolls-Royce suicide doors, some classic American cars

Key Takeaways

• A, B, C, D pillars named front to rear
• A-pillar: windshield frame, visibility vs. strength trade-off
• B-pillar: most critical for side impact, uses strongest steels
• C-pillar: rear styling, varies by body style
• D-pillar: exists on minivans, large SUVs, wagons
• Modern pillars use UHSS and hot stamping for strength in thin sections

---
